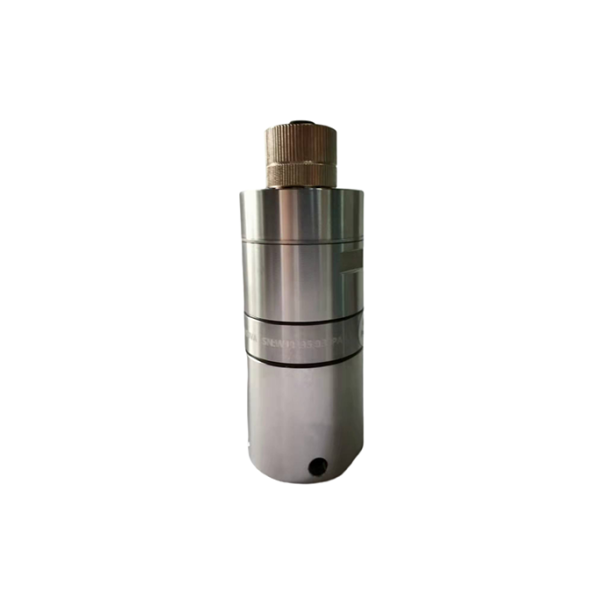

Laser Ethane Sensor

TDLAS Laser Technology | High Precision Ethane Detection (0~0.1%VOL)
Housing Material
All-metal housing (304 stainless steel)
Protection Rating
IP65 Patented waterproof immersion
Measuring Range
0 ~ 0.1% VOL
Accuracy
±50 ppm
Technology
TDLAS laser sensor (Tunable Diode Laser)
Operating Voltage
3.3 ~ 5 VDC
Operating Current
< 30 mA
Response Time (T90)
≤ 30 seconds
Communication
UART (3.3V TTL level)
Power Consumption
≤ 0.1 W
Operating Temperature
-30°C ~ +70°C
Operating Humidity
0 ~ 100% RH (non-condensing)
Service Life
≥ 10 years
✅ IP65 with patented waterproof protection🔋 Ultra-low power consumption ≤0.1W📡 TDLAS technology for high-precision ethane measurement
