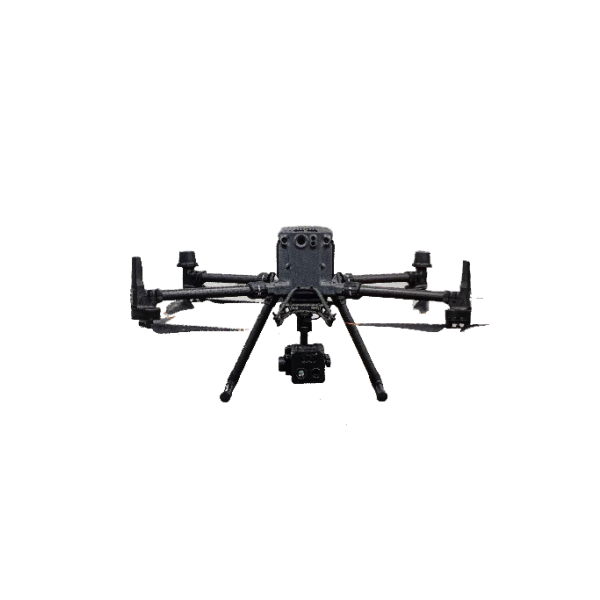

UAV Inspection (Multispectral Imaging)

UV Corona Detection · 240-280nm · Photon Counting · Drone Integration

🔆 Ultraviolet (UV) Channel

Wavelength Range

240 ~ 280 nm

UV Sensitivity

2×10⁻¹ watt/cm² (as specified)

Discharge Sensitivity

1 Pc @ 10 m

RIV Sensitivity

3.6 dBuV (RIV) @ 1 MHz @ 10 m

Field of View (FOV)

21.5° × 12.5°

Focus

Autofocus

Detection Distance

1.5 m to ∞

Resolution

1280 × 720 pixels

Photon Counting

Per minute / per second (selectable)

✈️ UAV Option (Drone Specifications)

Dimensions (Unfolded)

810 × 670 × 430 mm

Dimensions (Folded)

430 × 420 × 430 mm

Weight (Empty)

3.6 kg

Weight (with Battery)

6.3 kg

Payload Capacity

2.7 kg

Max Operating Altitude

5,000 m

Max Wind Resistance

15 m/s

Flight Time

55 minutes

Drone IP Rating

IP45

Drone Operating Temp

-20°C ~ +55°C

Drone Operating Humidity

≤ 90% RH
