Product Details

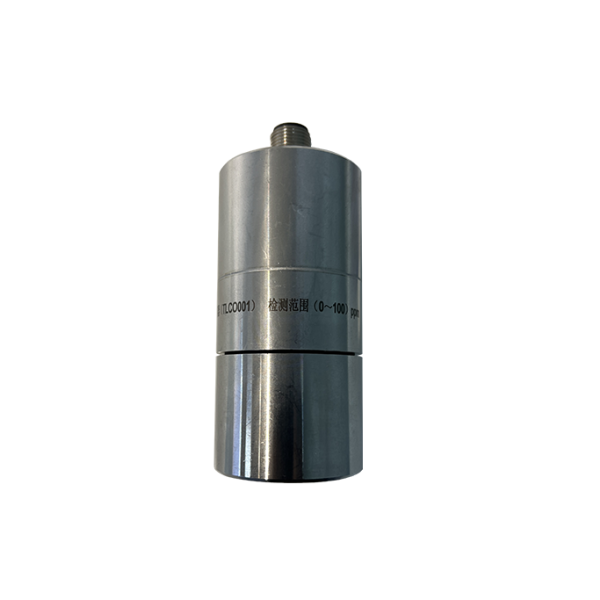

Carbon Monoxide Sensor

Electrochemical Technology | High-Precision CO Detection (0~1000ppm)
Housing Material
All-metal housing (304 stainless steel)
Protection Rating
IP65 Patented waterproof immersion
Detection Principle
Electrochemical
Measuring Range
0 ~ 1000 ppm
Measurement Accuracy
0.1 ppm
Response Time (T90)
≤ 15 seconds
Operating Voltage
4 ~ 6 VDC
Operating Current
0.1 mA
Communication
UART (+3.3V TTL level)
Operating Temperature
-20°C ~ +50°C
Operating Humidity
15 ~ 95% RH (non-condensing)
Service Life
1~2 years (in air)
