Product Details

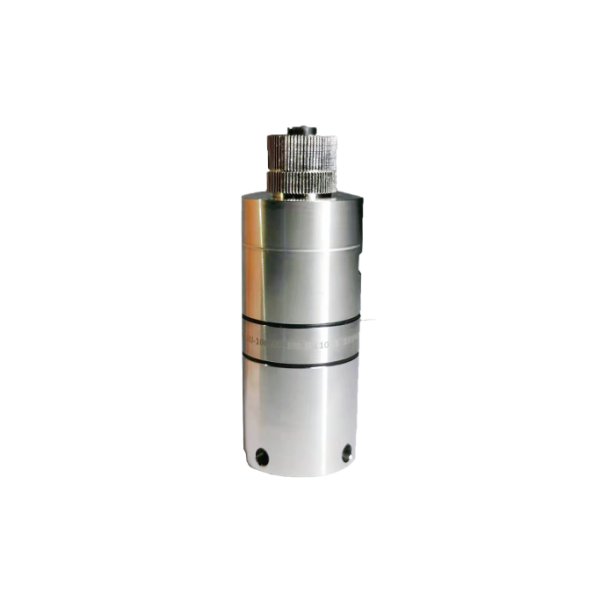

Laser Methane Sensor

Tunable Diode Laser Absorption Spectroscopy | Combustible gas detection (0~100%LEL)
Housing Material
All-metal housing (304 stainless steel)
Protection Rating
IP65 Patented waterproof immersion
Measuring Range
0 ~ 100% LEL
Accuracy
±5% LEL Customizable ±3% LEL
Technology
TDLAS laser sensor (Tunable Diode Laser)
Detection Limit
0.2% VOL Customizable 0.1% VOL
Operating Voltage
3.3 ~ 5 VDC
Operating Current
< 30 mA
Response Time (T90)
≤ 30 seconds
Communication
UART (3.3V TTL level)
Power Consumption
≤ 0.1 W
Operating Temperature
-30°C ~ +70°C
Operating Humidity
0 ~ 100% RH (non-condensing)
Service Life
≥ 10 years
