Robot Dog Laser Methane Inspection

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

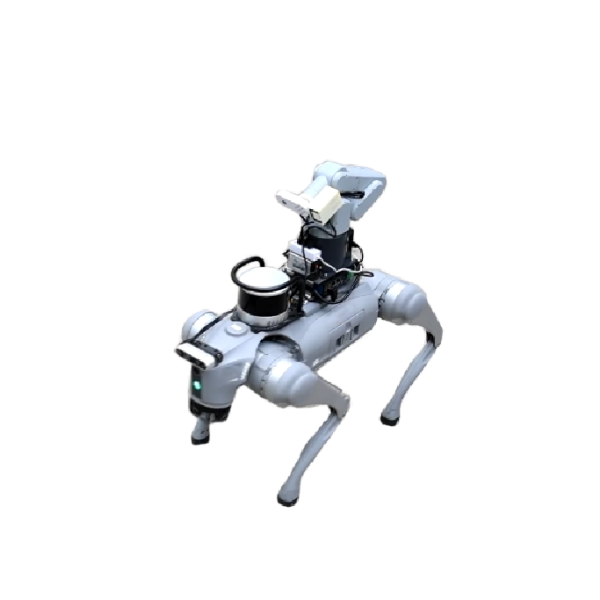

Robot Dog Laser Methane Inspection

Quadruped Robot with TDLAS Laser Detection · IP68 · Ex ib IIC T4

🔍 Laser Detection Module

Concentration Range

0 ~ 100,000 ppm·m

Accuracy

±10% @ 10,000 ppm·m

Optical Power Standard

Complies with GB3836.1-2021 Clause 6.6.2

Operating Laser

1650 nm infrared laser, CLASS I (eye-safe)

Pointer Laser

520 nm visible laser, CLASS IIIR

Ingress Protection (Sensor)

IP68 (dust-tight, continuous immersion)

Operating Voltage

12 ~ 24 V DC

Operating Temperature

-20°C ~ +50°C

Safety Certification

Ex ib IIC T4 Gb & CE ATEX

🐕 Quadruped Robot (Robot Dog) Mobility

Max. Speed

4.95 m/s

Range

15 km

Battery Life

2 ~ 4 hours

Climbing Ability

≥ 30° slope
