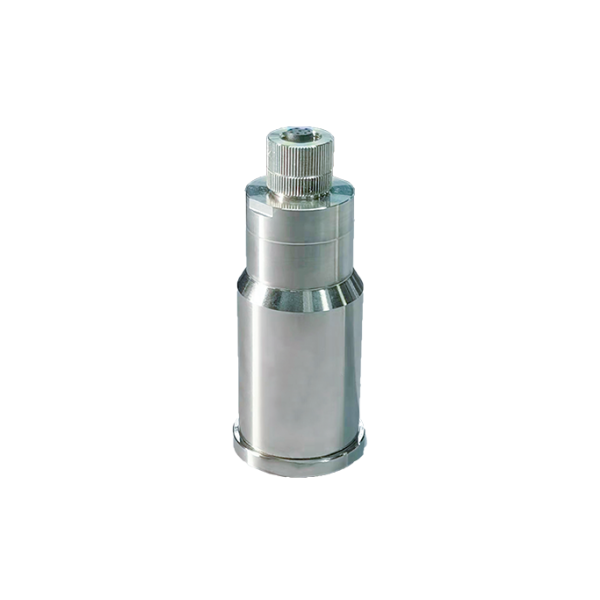

Infrared Combustible Sensor

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

NDIR Optical Technology | Combustible Gas Detection (0~100%LEL)

Housing Material

All-metal housing (304 stainless steel)

Protection Rating

IP65 Patented waterproof immersion

Measuring Range

0 ~ 100% LEL

Technology

NDIR infrared optical sensor

Detection Limit

0.2% VOL Customizable 0.1% VOL

Operating Voltage

3 ~ 5 VDC

Response Time (T90)

≤ 30 seconds

Communication

UART (3.3V TTL level)

Operating Temperature

-30°C ~ +70°C

Operating Humidity

0 ~ 100% RH (non-condensing)

Service Life

≥ 10 years
