Tetrahydrothiophene Sensor

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

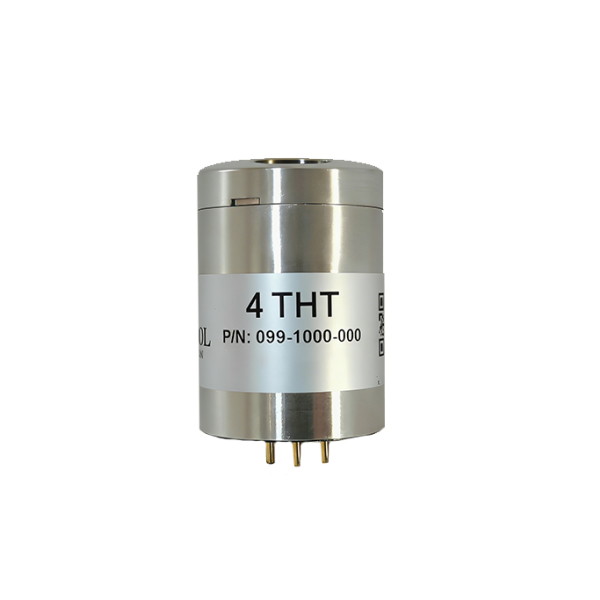

Tetrahydrothiophene (THT) Sensor

Electrochemical Gas Sensor | Odorant Monitoring for Gas Leak Detection

Measuring Range

0 – 50 mg/m³

Maximum Overload

100 mg/m³

Sensitivity

0.15 ± 0.05 μA / (mg/m³)

Baseline (20°C)

< ±0.4 μA

Resolution

0.3 mg/m³

Response Time (T90)

< 60 seconds

Operating Temperature

-20°C ~ +50°C

Operating Humidity

15% ~ 90% RH (non-condensing)

Operating Pressure

90 ~ 110 kPa

Bias Voltage

300 mV
