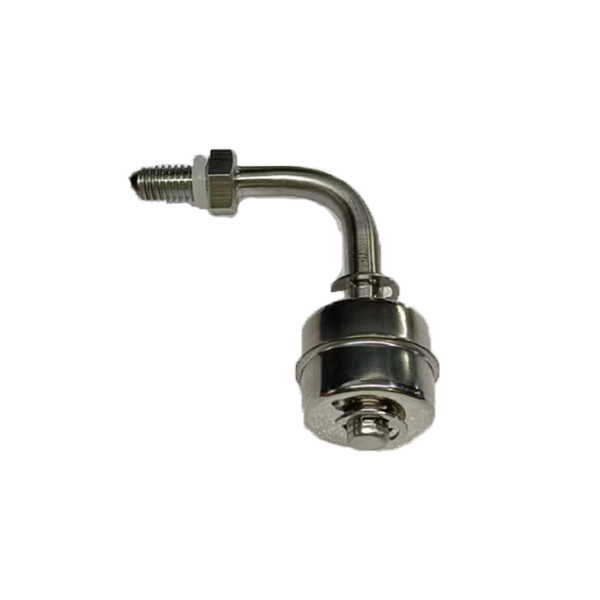

Water Level Sensor (Right-Angle Type)

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

SUS304 · Adjustable Float Length · SPST Reed Switch

Body Material

SUS304 (Right-angle type)

Float Length

45mm ~ 200mm (selectable)

Operating Current

1 mA

Operating Temperature

-30°C ~ +125°C

Max. Contact Rating

10W / SPST

Max. Switching Voltage

100V (DC or AC)

Max. Switching Current

0.5 A

Max. Carry Current

1.0 A

Max. Contact Resistance

100 mΩ

Max. Breakdown Voltage

110V (DC or AC)
