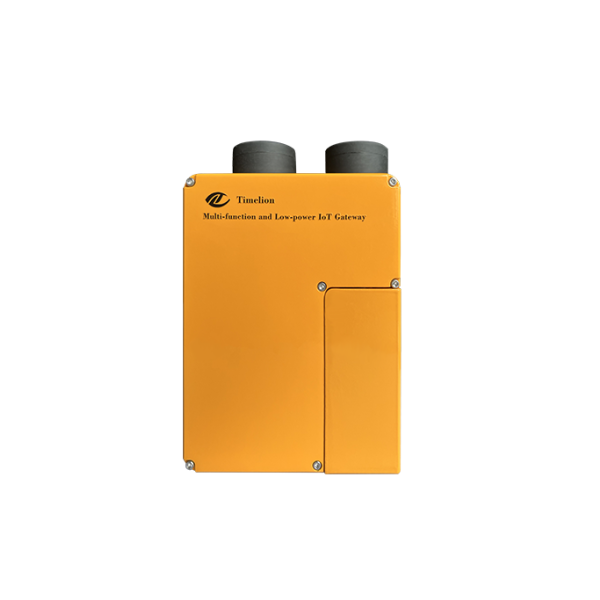

IoT Gateway (Pressure + Leak)

Multi‑Sensor · IP68 · Ex ib IIB T4 · NB-IoT/4G · Long Battery Life

Power Supply

DC 7.2V, 76,000 mAh primary lithium‑thionyl chloride battery (non‑rechargeable)

Battery Life

1.5 years (with laser sensor only, default sampling & upload frequency)

Standby Current

≤ 100 μA

Data Acquisition Interfaces

0-3V, UART (TTL), 4-20mA, I²C, HART, RS485

Compatible Sensors

Combustible gas, pressure, water level, manhole cover displacement, temperature & humidity, other standard‑interface instruments, BeiDou positioning sensor, etc.

Short‑range Communication

Bluetooth 4.0 (parameter configuration, firmware upgrade)

Cellular Network

NB-IoT (standard), 4G (customizable)

Sampling Frequency

Default 48 times/day (adjustable via web: 2 min – 23h59min)

Upload Frequency

Default 6 times/day (adjustable via web: 2 min – 23h59min)

Data Management

Local storage + remote server data management

Remote Configuration

Supported (remote parameter settings)

Operating Temperature

-40°C ~ +70°C

Operating Humidity

0 ~ 95% RH (non‑condensing)

Atmospheric Pressure

86 ~ 106 kPa

Explosion‑proof Rating

Ex ib IIB T4 Gb

Explosion‑proof Type

Intrinsically safe (Ex ib)

Connector Type

IP68 aviation connector

Housing Material

All-metal housing (aluminum alloy + 304 stainless steel)

Ingress Protection

IP68 (fully submersible)
