Product Details

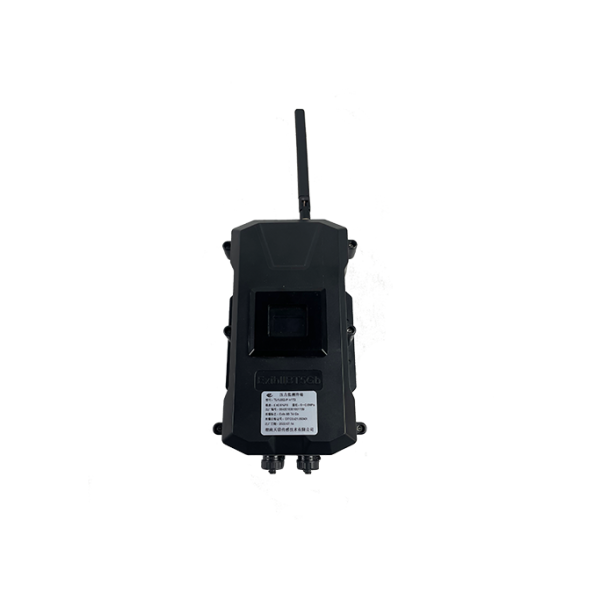

IoT Gateway (Pressure)

IP68 Submersible · NB-IoT/4G · Bluetooth · Intrinsically Safe

Housing Material

ABS+PC

Ingress Protection

IP68 (supports prolonged underwater immersion ≥7 days)

Data Acquisition Interfaces

UART, I²C, 0-3V, RS485

Remote Communication

NB-IoT (standard), 4G (optional)

Short‑range Communication

Bluetooth 4.0 BLE, low‑power design

Sampling Frequency

Default 48 times/day (adjustable via web: 2 min – 23h59min)

Upload Frequency

Default 6 times/day (adjustable via web: 2 min – 23h59min)

Operating Temperature

-20°C ~ +50°C

Display

LCD

Operating Humidity

0 ~ 95% RH (non-condensing)

Explosion‑proof Rating

Ex ib IIB T4 Gb

Explosion‑proof Type

Intrinsically safe (Ex ib)

Power & Battery Life

Low‑power algorithm, battery 1–6 years (external power support optional)

Sensor Ports

2 (two) configurable interfaces
