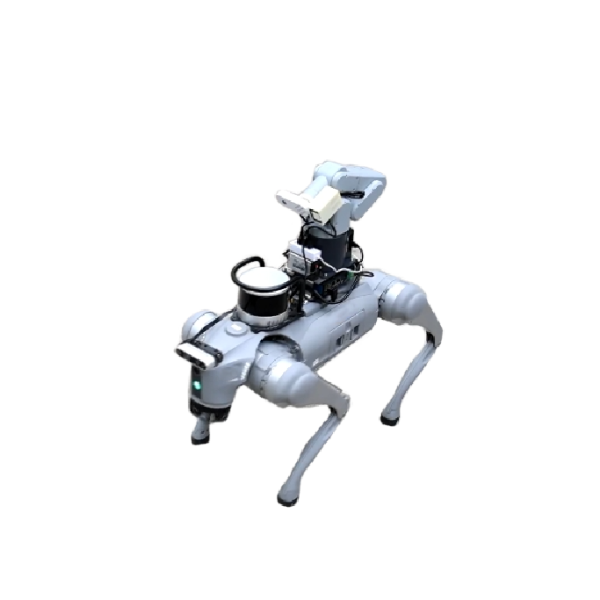

Robot Dog Multispectral Imaging System

UV Corona Detection · Autofocus · Photon Counting · Legged Mobility

🔆 Ultraviolet (UV) Channel

Wavelength Range

240 ~ 280 nm

UV Sensitivity

2×10⁻¹ watt/cm² (as specified)

Discharge Sensitivity

1 Pc @ 10 m

RIV Sensitivity

3.6 dBuV (RIV) @ 1 MHz @ 10 m

Field of View (FOV)

21.5° × 12.5°

Focus

Autofocus

Detection Distance

1.5 m to ∞

Resolution

1280 × 720 pixels

Photon Counting

Per minute / per second (selectable)

🐕 Quadruped Robot Mobility

Max. Speed

4.95 m/s

Range

15 km

Battery Life

2 ~ 4 hours

Climbing Ability

≥ 30° slope
