Product Details

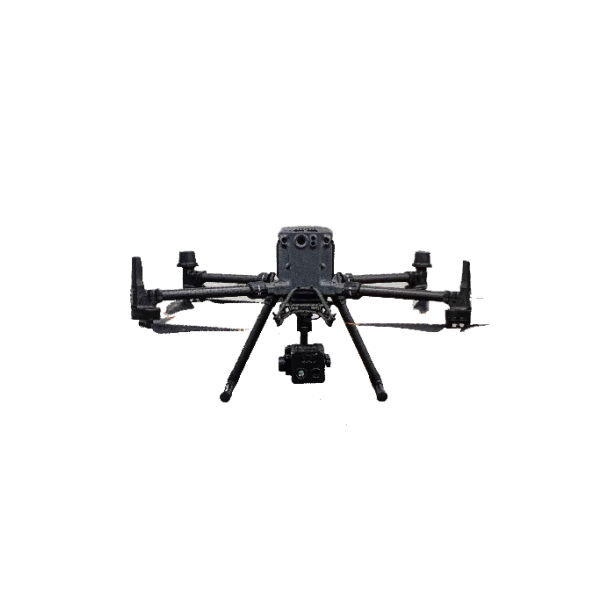

UAV Inspection (Laser Methane)

Remote Gas Leak Monitoring · IP68 Sensor · Drone Integration

🔍 Laser Methane Detection Module

Concentration Range

0 ~ 100,000 ppm·m

Accuracy

±10% @ 10,000 ppm·m

Optical Power

Complies with GB3836.1-2021 Clause 6.6.2

Operating Laser

1650 nm infrared laser, CLASS I

Pointer Laser

520 nm visible laser, CLASS IIIR

Ingress Protection (Sensor)

IP68 (dust-tight, continuous immersion)

Operating Voltage

12 ~ 24 V DC

Operating Temperature

-20°C ~ +50°C

✈️ UAV Option (Drone Specifications)

Dimensions (Unfolded)

810 × 670 × 430 mm

Dimensions (Folded)

430 × 420 × 430 mm

Weight (Empty)

3.6 kg

Weight (with Battery)

6.3 kg

Payload Capacity

2.7 kg

Max Operating Altitude

5,000 m

Max Wind Resistance

15 m/s

Flight Time

55 minutes

Drone IP Rating

IP45

Drone Operating Temp

-20°C ~ +55°C

Drone Operating Humidity

≤ 90% RH
