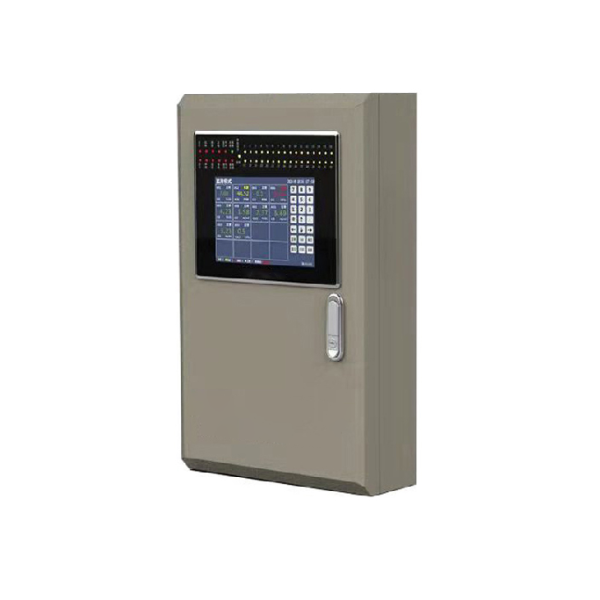

Gas Alarm Controller TL-MIC3000

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Gas Alarm Controller TL-MIC3000

Touch Screen · Large Memory · 4-20mA & RS485 I/O · Wireless · IP65

Compatible Sensors

Various gas detectors, temperature & humidity transmitters, pressure transmitters, wind speed transmitters, dust detectors, etc.

Key Features

Touchscreen display
English/Chinese selectable, large-capacity memory card
Simultaneous 4-20mA & RS485 inputs; outputs 4-20mA & RS485
Supports wireless transmission
Remote transmission function – displays real-time concentration of field probes

Measuring Range

Customizable, digital display 0 ~ 99999

Resolution

Selectable: 1, 0.1, 0.01, 0.001

Typical Accuracy

±0.1% FS

Power Supply

AC 180~240V, 50/60 Hz

Operating Environment

Temp: -20°C ~ +70°C; Humidity: 0-95% RH (non-condensing)

Signal Output

RS485

Alarm Type

Audible + visual (strobe), three-level alarm; each channel independently configurable high/low alarm setpoints; each channel can trigger up to 3 relay outputs

Dimensions (L×W×H)

320 mm × 120 mm × 520 mm (max)

Weight

Approx. 8.8 kg

Ingress Protection

IP65 (dust-tight, water jets)
