Product Details

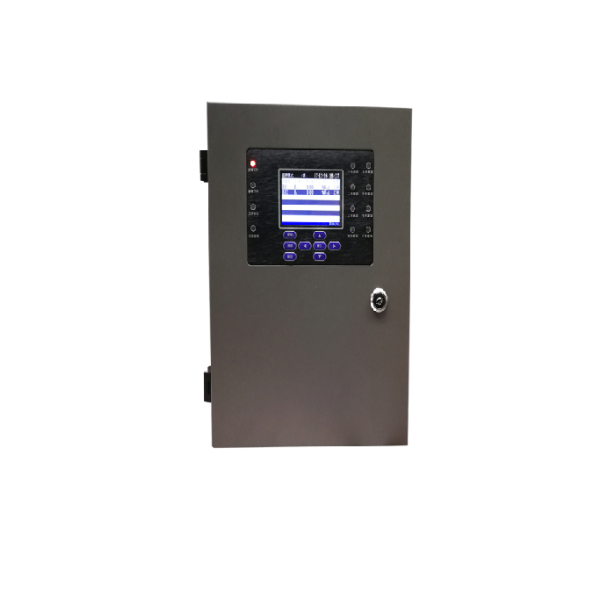

Gas Alarm Controller TL-MIC2000

Dual 4-20mA & RS485 Input/Output · Wireless 4G · IP65 · Relay Linkage

Compatible Sensors

Various gas detectors, temp/humidity, pressure, wind speed, dust detectors (RS485 or 4-20mA signals)

Key Features

High cost-performance ratio
English / Chinese selectable interface
Simultaneously accepts 4-20mA and RS485 inputs; outputs 4-20mA and RS485
Supports wireless transmission (4G)

Units (Selectable)

PPM, LEL%, Vol%, mg/m³, ug/L, PPHM, ℃, RH%, Pa, kg, PSI, m/s

Resolution

Selectable: 1, 0.1, 0.01, 0.001

Typical Accuracy

±0.1% FS

Power Supply

AC 180~240V, 50/60 Hz

Operating Environment

Temp: -20°C ~ +70°C; Humidity: 0-95% RH (non-condensing)

Signal Output

RS485, 4G (wireless)

Alarm Type

Audible + visual (strobe), three-level alarm; each channel independently configurable high/low alarm setpoints; each channel can trigger up to 3 relay outputs

Dimensions (L×W×H)

260 mm × 90 mm × 330 mm (max)

Weight

Approx. 3.8 kg

Ingress Protection

IP65 (dust-tight, water jets)
