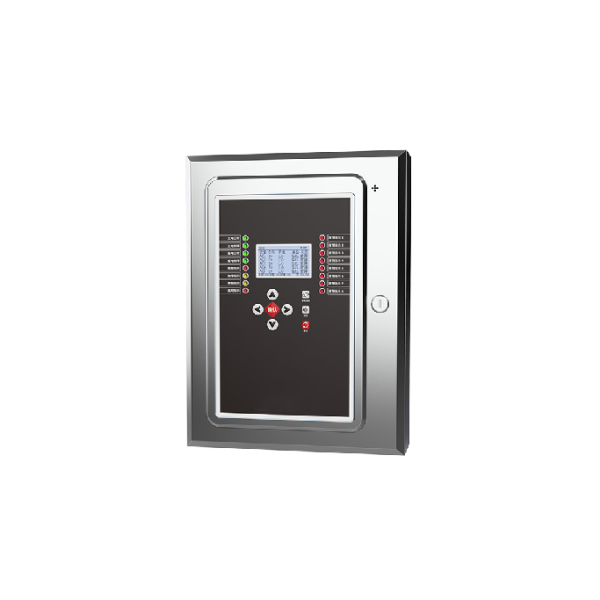

Gas Alarm Controller TL-MIC1000

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Multi-Channel Monitoring · Modular Design · Remote Transmission

Compatible Sensors

Various gas detectors, temperature & humidity transmitters, pressure transmitters, wind speed transmitters, dust detectors (RS485 or 4-20mA)

Key Features

Measuring Range

Customizable (digital display 0 ~ 99999)

Resolution

Selectable: 1, 0.1, 0.01, 0.001

Typical Accuracy

±0.1% FS

Power Supply

AC 220V (built-in AC220V to DC24V switching power supply)

Operating Environment

Temperature: -20°C ~ +55°C; Humidity: 0-95% RH (non-condensing)

Signal Output

RS485

Alarm Type

Audible + visual (strobe), three-level alarm; each channel independently configurable alarm setpoints

Dimensions (L×W×H)

400 mm × 300 mm × 1000 mm (max)
