Product Details

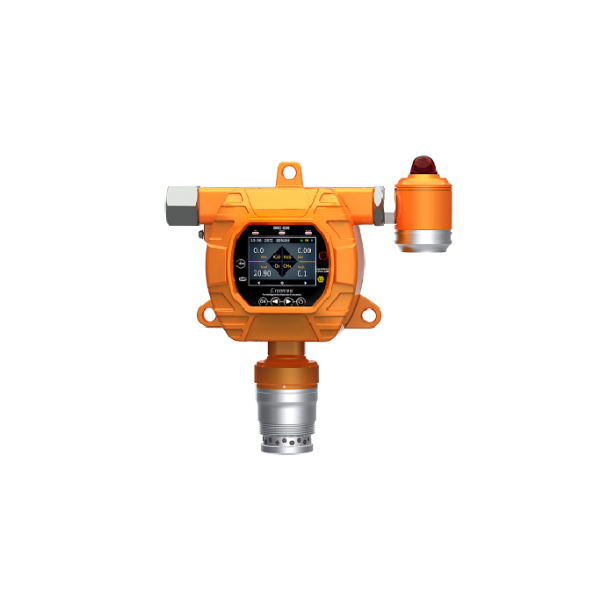

Fixed Multi-Gas Detector with Alarm

0-100%LEL · 0.1%LEL Resolution · ±2%FS · IP67 · Dual Ex

Measuring Range

0 ~ 100% LEL

Resolution

0.1% LEL (0~100%LEL)

Typical Accuracy

≤ ±2% FS

Sampling Method

Diffusion

Power Supply

DC 24V

Operating Environment

Temp: -20°C ~ +55°C (extreme -40°C ~ +70°C); Humidity: 10~95% RH

Signal Output

RS485 (Modbus RTU), 4~20 mA (3-wire)

Alarm Type

Audible + visual strobe (optional), 1-3 relay dry contact outputs

Dimensions (L×W×H)

260 mm × 230 mm × 90 mm (max)

Weight

Approx. 2.7 kg

Ingress Protection

IP67 (dust-tight, temporary immersion)

Explosion-proof Rating

Ex db IIC T6 Gb / Ex ia IIC T6 Gb
