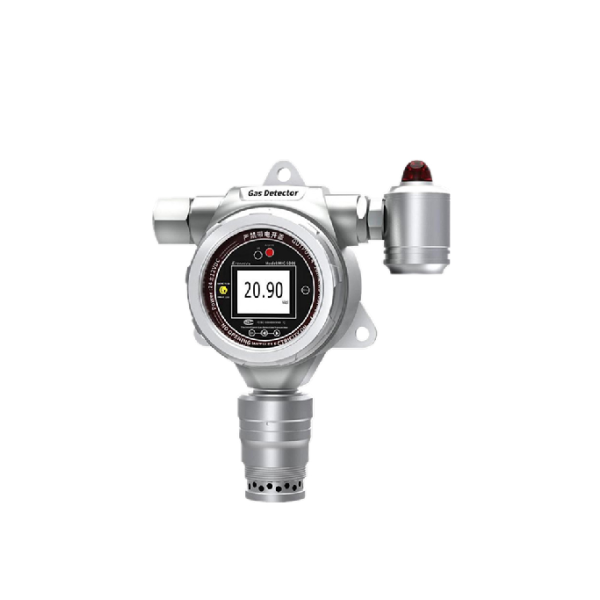

Online Combustible Gas Detector

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Fixed Monitor · 0-100%LEL · IP67 · Ex db IIC T6 / Ex ia IIC T6

Measuring Range

0 ~ 100% LEL

Typical Accuracy

≤ ±3% FS (Full Scale)

Sampling Method

Diffusion

Power Supply

DC 24V (optional 220 VAC)

Operating Environment

Temp: -20°C ~ +55°C (extreme -40°C ~ +70°C); Humidity: 10~95% RH

Signal Output

RS485 (Modbus RTU), 4~20 mA (3-wire)

Alarm Type

Audible + visual strobe (optional), 1-2 relay dry contact outputs

Dimensions (L×W×H)

238 mm × 210 mm × 90 mm (max)

Weight

Approx. 1.6 kg

Ingress Protection

IP67 (dust-tight, temporary immersion)

Explosion-proof Rating

Ex db IIC T6 Gb / Ex ia IIC T6 Gb
