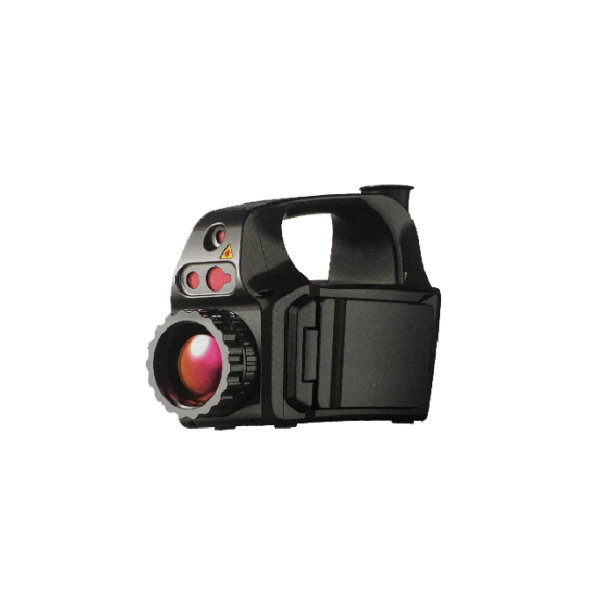

Gas Leak Infrared Imager

Cooled QWIP Detector · 8MP Resolution · Auto Focus · Video Recording

Detector Type

Cooled long-wave infrared / Quantum Well Infrared Photodetector (QWIP)

Spectral Range

10.3 ~ 10.7 μm / 3.1 ~ 3.5 μm (selectable)

Frame Rate

50 / 60 fps

Resolution

8 megapixels

Focusing

Autofocus

Flashlight

Supported

Battery

Rechargeable Li-ion, 9.6 Ah

Charging Method

Charger / Device charging

Battery Life

≥ 4 hours

Operating Temperature

-20°C ~ +50°C

Operating Humidity

< 95% RH (non-condensing)

Ingress Protection

IP54 (dust-protected, water splash)

Recording & Playback

Video, audio, image recording and playback

Dimensions (L×H×W)

278 × 182 × 178 mm

Weight

< 2.8 kg
