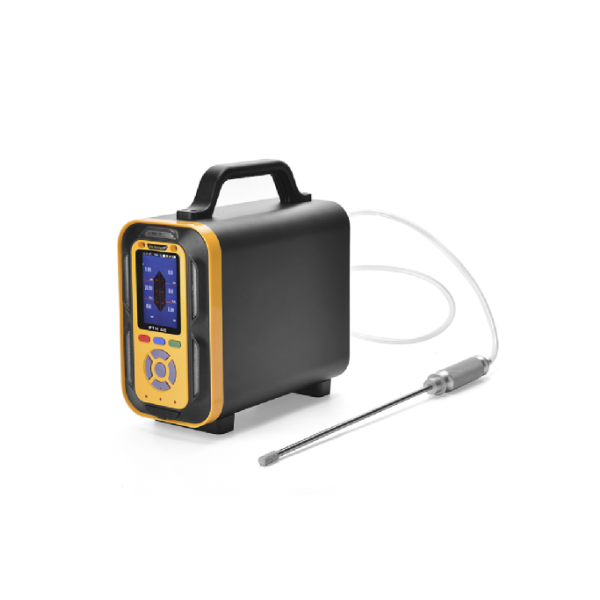

Portable Composite Gas Analyzer

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Portable Composite Gas Analyzer

Pump Suction · High Precision · Wireless & Printing Options · IP66

Gas Detection Capacity

1 to 18 gases (any combination, expandable to 24 or more)

Key Features

Available Ranges

0-1, 10, 100, 1000, 5000, 10000, 50000 ppm; 0-100% LEL; 0-5%Vol, 30%Vol, 100%Vol; other ranges optional. Range determined by application.

Typical Accuracy

±2% FS (Full Scale)

Sampling Method

Built-in pump (active suction)

Power Supply

3.8 VDC, 5400 mAh × 2, SB charging port

Operating Environment

Typical: -20°C ~ +55°C; Extreme: -40°C ~ +70°C; Humidity: 10-95% RH (non-condensing)

Data Storage

Standard 100,000 records; larger capacity customizable; optional 16GB memory card

Printing

Optional external micro wireless Bluetooth printer or built‑in integrated printer

Alarm Types

Audible, visual (LED), vibration

Dimensions (L×H×W)

255 × 210 × 125 mm

Weight

Approx. 3.2 kg (varies slightly with gas configuration)

Ingress Protection

IP66 (dust-tight, strong water jets)
