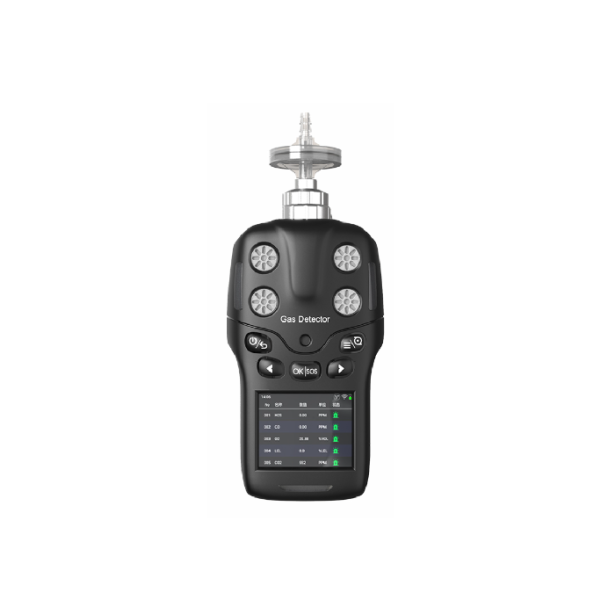

Portable 4-in-1 Gas Detector

Brand: tlcssk

Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Product Details

Portable 4-in-1 Gas Detector

Up to 4 Digital Sensors · Pump/Diffusion Switchable · IP68 · Ex ia

Target Gases

Toxic gases, combustible gases, oxygen (O₂), carbon dioxide (CO₂), VOC, etc.

Key Features

Accommodates 1-4 digital sensors
Built-in pump measurement, one-key switch to diffusion mode
IP68 protection rating (dust-tight, submersible)
Multiple alarm modes & adjustable alarm setpoints (audible, visual, vibration, voice)
Intrinsically safe circuit design: explosion-proof, vibration-resistant, anti-static, radiation-resistant

Measuring Range

Customized according to site conditions & user requirements

Typical Accuracy

≤ ±3% FS (higher accuracy sensors optional)

Sampling Method

Built-in pump + diffusion (switchable)

Power Supply

DC 7.4V

Operating Environment

Temp: -20°C ~ +55°C (customizable -40°C ~ +70°C); Humidity: 10~95% RH

Data Storage

Standard capacity >1 million records; optional large memory card; on-device view/delete/export; adjustable logging interval

Alarm Types

Audible, visual (LED), vibration, voice alarm

Dimensions (L×W×H)

147 × 83 × 50 mm (max)

Weight

Approx. 430 g

Ingress Protection

IP68 (fully dust-tight, continuous immersion)
